Turn a Coffee Maker Control Board into a Cleaner RFQ
A pcb assembly service conversation becomes more useful when the buyer names the exact pcb board assembly baseline: FR4, two layers, 1.6mm thickness, 1oz copper, HASL, prototype needs and small-batch expectations.
FR4 / 2Lvisible board baseline
1.6mm / 1ozthickness and copper reference
HASLsurface finish to confirm
Visible Board Details Worth Quoting Against

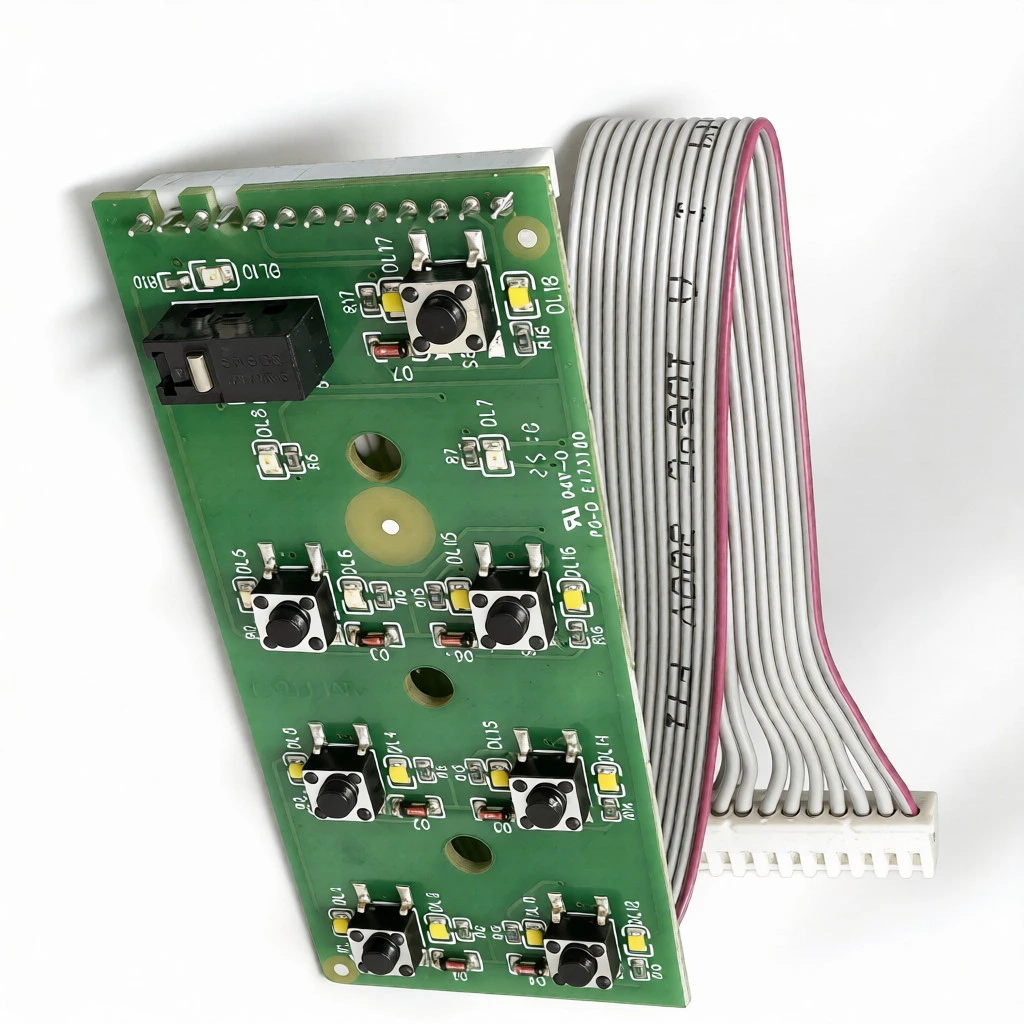

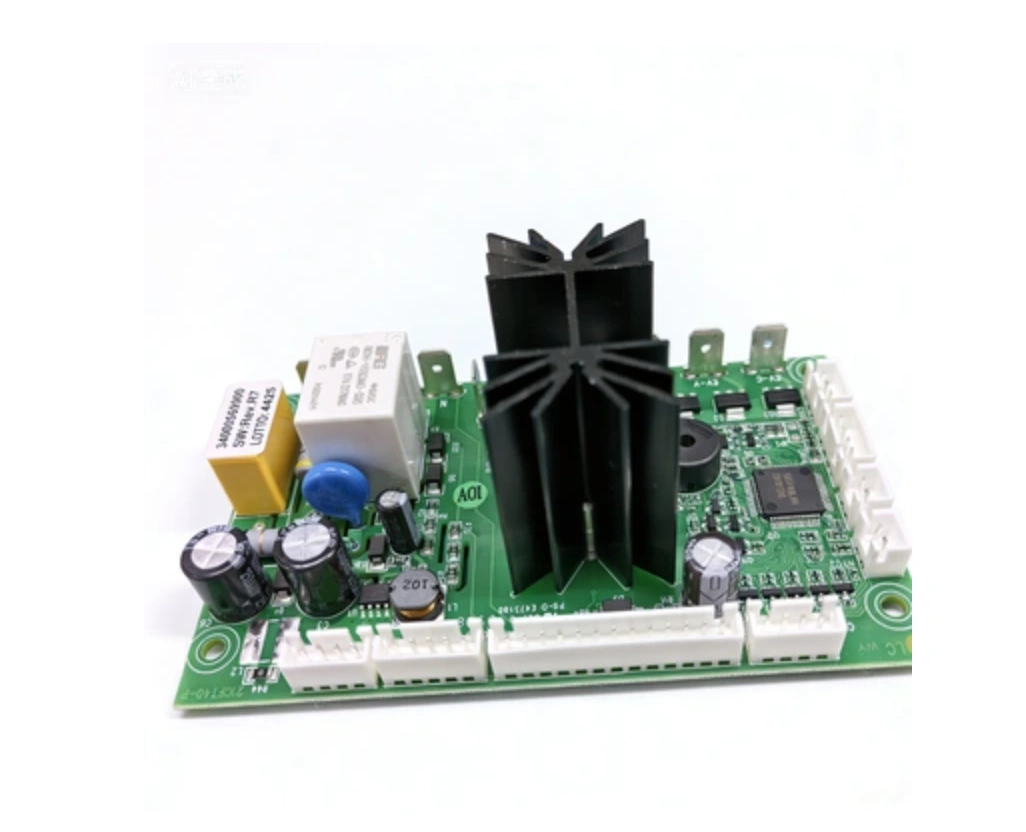

| Product identity | Coffee Maker PCB Board for appliance control-board projects. |
|---|---|
| Board baseline | FR4 material, 2L layer count, 1.6mm board thickness, 1oz copper thickness and HASL process. |
| Control functions | The product text states power distribution, brewing temperature sensors, pumps or heaters and timers. |
| Development use | The page positions the board for OEMs, product developers, prototype validation and low-run production conversations. |
| Do not assume | Public specs do not settle certification, final warranty, delivery promise, testing scope or current capacity. |
Board files
Prepare Gerber files, BOM and any assembly drawings before asking Vortixion to judge manufacturability.
Baseline specs
State whether FR4, 2L, 1.6mm, 1oz copper and HASL match the intended control-board revision.
Build stage
Separate prototype validation from low-run production so the quote can focus on the right risk.
Test expectations
List the checks needed for power distribution, sensors, pumps, heaters and timer behavior.
Firmware notes
Clarify microcontroller, NTC sensor and relay-control assumptions that affect board bring-up.
Commercial boundaries
Ask the supplier to confirm warranty, delivery and compliance scope instead of assuming them from public specs.
Product matrix
Compare Related PCB Product Options
The coffee maker PCB is the anchor case, while Vortixion also lists other board categories that help buyers clarify control-board, flex-board and bare-board needs.
Flex PCB board
Flex PCB is a better comparison path when the enclosure, bending radius or connection route matters more than a rigid appliance control board.
View Flex PCB

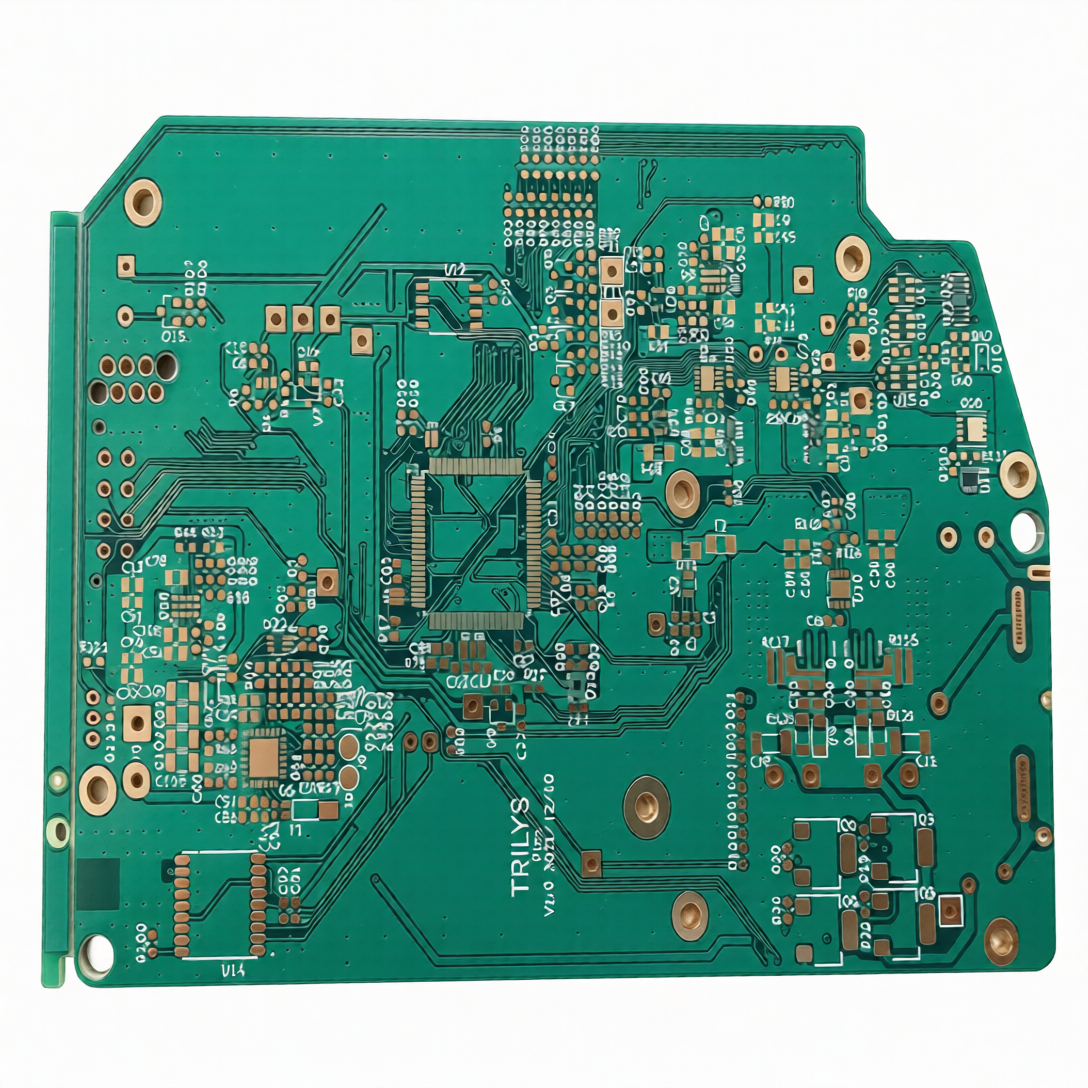

Bare PCB board
Bare PCB helps separate board fabrication requirements from full assembly questions before buyers discuss components, firmware and testing.
View Bare PCBArticles and guides
Read the Three RFQ Support Articles
Prototype testing pcb assembly vs small batch production for coffee maker control boards
Separates design-learning risk from repeatable assembly risk for control-board projects.
Read Article
Coffee maker pcb board RFQ terms for OEM warranty and delivery boundaries
Helps buyers separate brand use, IP, warranty and delivery language before supplier quoting.
Read Article
How to evaluate fr4 2l 1 6mm 1oz copper and hasl in a coffee maker pcb board
Shows how visible specifications can discipline a quote without over-reading missing compliance or testing facts.
Read ArticleFAQ
What product is used as the example?
The page uses Vortixion's Coffee Maker PCB Board product page as the example control-board project.
Which PCB specifications are visible on the product page?
The product page lists FR4 board material, 1.6mm board thickness, 2L layer count, 1oz copper thickness and HASL process.
What coffee-maker functions does the board support?
The product text says the board handles power distribution, temperature sensors for brewing, pumps or heaters and timers.
Should prototype testing and small-batch production be treated the same?
No. The related article explains that prototype testing focuses on design learning, while small-batch production focuses more on repeatable assembly and batch feedback.
Can FR4, 2L, 1.6mm, 1oz copper and HASL prove full performance?
No. Those public specifications help define the RFQ baseline, but current capacity, thermal behavior, compliance, testing and lead time still need supplier confirmation.
What should a coffee maker control-board RFQ include?
Include the appliance function, board files, listed material assumptions, assembly quantity, test expectations, firmware or sensor needs and any OEM warranty or delivery boundaries.
Prepare a quote request that engineers can answer
Start with the visible board baseline, then add files, quantity, test expectations and commercial boundaries before asking Vortixion to quote.
