Product Description
Targeted Control Solution for LED Lighting Management

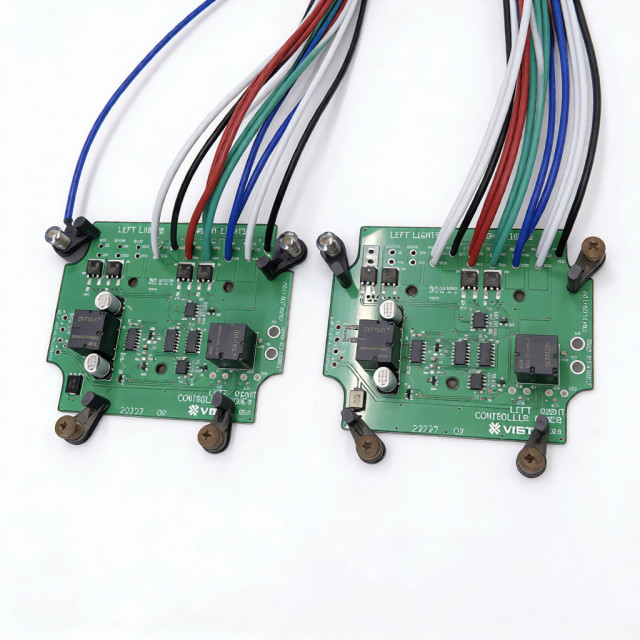

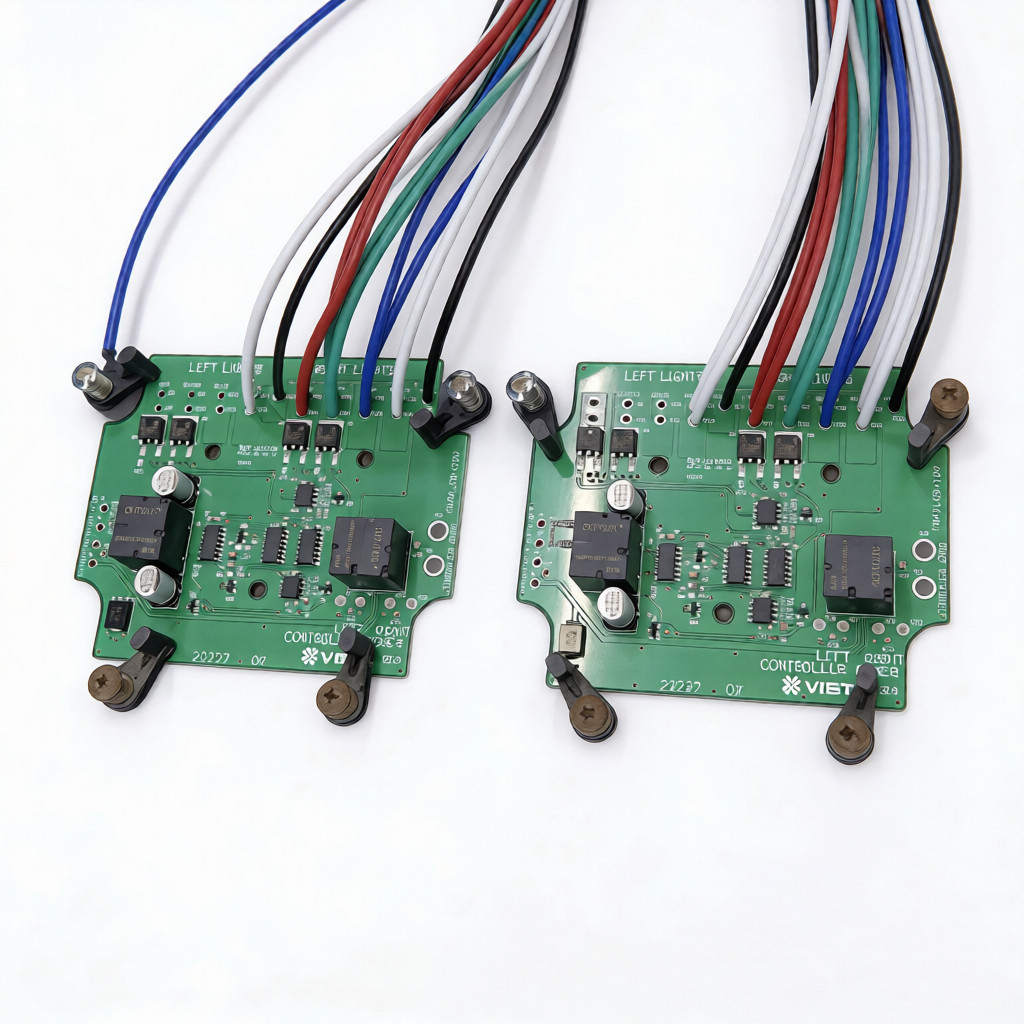

This LED Multi Controller LANE PCB Board is engineered for professional system integrators and manufacturers specializing in recreational vehicle and mobile lighting applications. It functions as the centralized control interface for single-color, RGB, RGBW, and CCT (tunable white) LED strips, providing flexible scene modes, color-changing effects, and dimming capabilities. The device addresses the demand for reliable low volume pcb assembly units with precise control outputs, supporting integration into multi-channel lighting architectures. Its compatibility with wireless and app-based interfaces makes it fit for projects requiring customizable lighting dynamics in compact form factors.
Technical Composition and Electrical Specifications
Constructed with a 1.6 mm thick FR4 material layered with 2L copper and finished using HASL, this board ensures mechanical strength and electrical integrity suited for dynamic environments. Operating within an 11-16V input range compatible with 12V DC vehicle systems, it supports a drive current capacity of up to 7A per channel and a total power dissipation maxing at 720 W. These measurable technical parameters allow for consistent performance even under varying load conditions, demonstrating robustness in automotive-grade pcb manufacturing services and adaptable flexible pcb board designs. The board’s architecture facilitates rapid prototyping and integration aligned with flexible pcb prototype requirements for specialized lighting solutions.
Application Domains and Integration Benefits
The LED Multi Controller is primarily targeted at recreational vehicle lighting manufacturers and automotive electrical system developers who require modular, programmable LED control with efficient power management. It supports color tuning and dynamic scene modulation for both interior and exterior lighting arrays. Integrated within a broader ecosystem offering pcb assembly services, this product enables synchronized multi-channel control essential to enhance user experience and operational reliability. Its design also caters to quick OEM prototyping and end-to-end system production workflows, underlining its value in rapid development cycles and quality-driven pcb manufacturing services across diverse industries.
Product Advantages
Design and Structural Integrity
The controller PCB benefits from a compact, dual-layer design on a robust FR4 substrate with HASL finish, which offers resistance against mechanical stress and corrosion. The board layout optimizes signal integrity and thermal management, critical for multi-channel LED control systems operating in mobile environments. Its modular design supports seamless integration into larger control boxes and lighting systems, facilitating customized lighting arrangements without compromising electrical performance. This approach complements advanced pcb assembly services and supports both low volume pcb assembly and scalable production scenarios often demanded by clients.
High Performance and Operational Flexibility
Operational efficiency is assured through support for high drive currents (7A per channel), enabling bright and dynamic lighting configurations. User-centric functionality includes wireless and app control capabilities, programmable scene modes, and timers, enhancing system usability and control precision. The product’s compatibility across flexible pcb manufacturing platforms allows for custom adaptations, reducing time-to-market and improving ROI. Such features provide end users with versatile and reliable lighting control in demanding environments, aligning with specifications typical in flexible pcb prototype development for specialized applications.
Use Scenarios
Integration in Recreational Vehicle Interior Lighting Systems
In the context of recreational vehicle manufacturing, this LED Multi Controller LANE PCB Board plays a critical role in managing interior ambient and accent lighting using multi-color LED strips. The product’s technical design addresses the stringent requirements of automotive-compatible power inputs (11-16V) and supports high current loads per channel, which are essential for bright, consistent lighting performance. It integrates smoothly with existing RV lighting controllers and power systems, allowing OEMs and integrators to implement programmable dimming and color-changing effects. This ensures operational compliance with mobile electrical system standards and enhances passenger comfort through adaptable lighting atmospheres facilitated by pcb manufacturing services.
Role in Wireless-Controlled Exterior LED Lighting for Vehicles
This controller is also utilized in exterior LED lighting assemblies on vehicles, where it handles multi-channel RGBW and CCT lighting configurations. In such applications, it provides driver modules capable of dynamic scene transitions and wireless control interfacing, critical for compliance with automotive lighting regulations and visual signaling requirements. The board’s robust design suits outdoor conditions and supports rapid prototyping to validate lighting effects and power management within flexible pcb prototype environments. Its integration into multi-assembly workflows reduces system complexity and supports efficient pcb assembly services tailored for light-based vehicular signaling and decorative illumination.
Our LED Multi Controller LANE PCB Board supports single-color, RGB, RGBW, and CCT (tunable white) LED strips. It offers flexible control with dimming, color-changing effects, and programmable modes to match your RV lighting requirements precisely.
Can you customize PCB assembly services for different production volumes?
Yes, we provide tailored pcb assembly services, including low volume pcb assembly that suits prototype to small batch needs. Our production supports a wide range of volumes with consistent quality control, ensuring your project meets technical and schedule demands.
What are the power requirements and electrical specifications of this PCB board?
The board operates on 11-16V DC input, suited for 12V automotive systems. It supports a maximum drive current of 7A per channel with a total max power dissipation of 720W. Its 1.6mm FR4 with 2-layer copper and HASL finish enhances durability for mobile environments.
